Product Detail

Description:

Features：

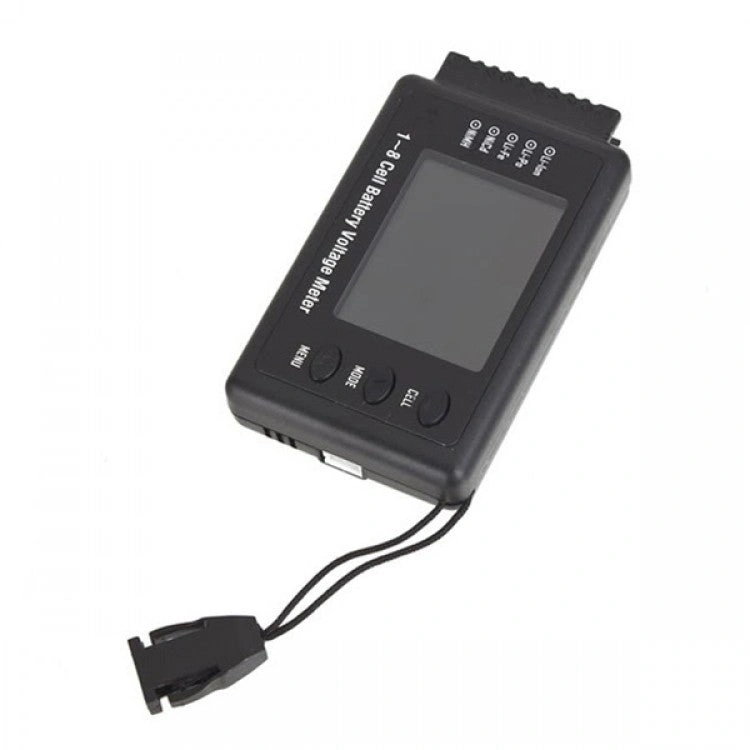

- small size with mutiple functions, backlight 128*64 Lattices LCD and Buzzer Tone Reminder, the interface can be operated smoothly.
- Battery Voltage Meter can not only measure 1-8 batteries individual voltage, but also measure Nimh,nicd,pb battery pack voltage.
- it can be set individual voltage alarm, low voltage alarm,differential volatage alarm,what's more, the extra alarm output can be lingkage controlled by the users.
- it has 5 sets defualt monitor alarm settings, which can be selected for diffrent battery packs.
- battery voltage meter has been 100% calibrated before it enters to the market.
Specifications:
- Battery range:  LiPO/LiFe/LiIO
- Voltage display resolution: 0.001V
- Voltage Detection precision: 0.005V
- Cell Voltage display range: 0.5-5.0V
- Total Voltage display range:3.30-24.0V
- Alarm cell voltage: 2.00-4.00V
- Current loading of test:24mA
- Pins distance: 2.54mm OR 2.00mm
- Size: 67x39x13(L*W*T,mm)
- Weight: 23g
-  Package: transparent heat shrink tube
