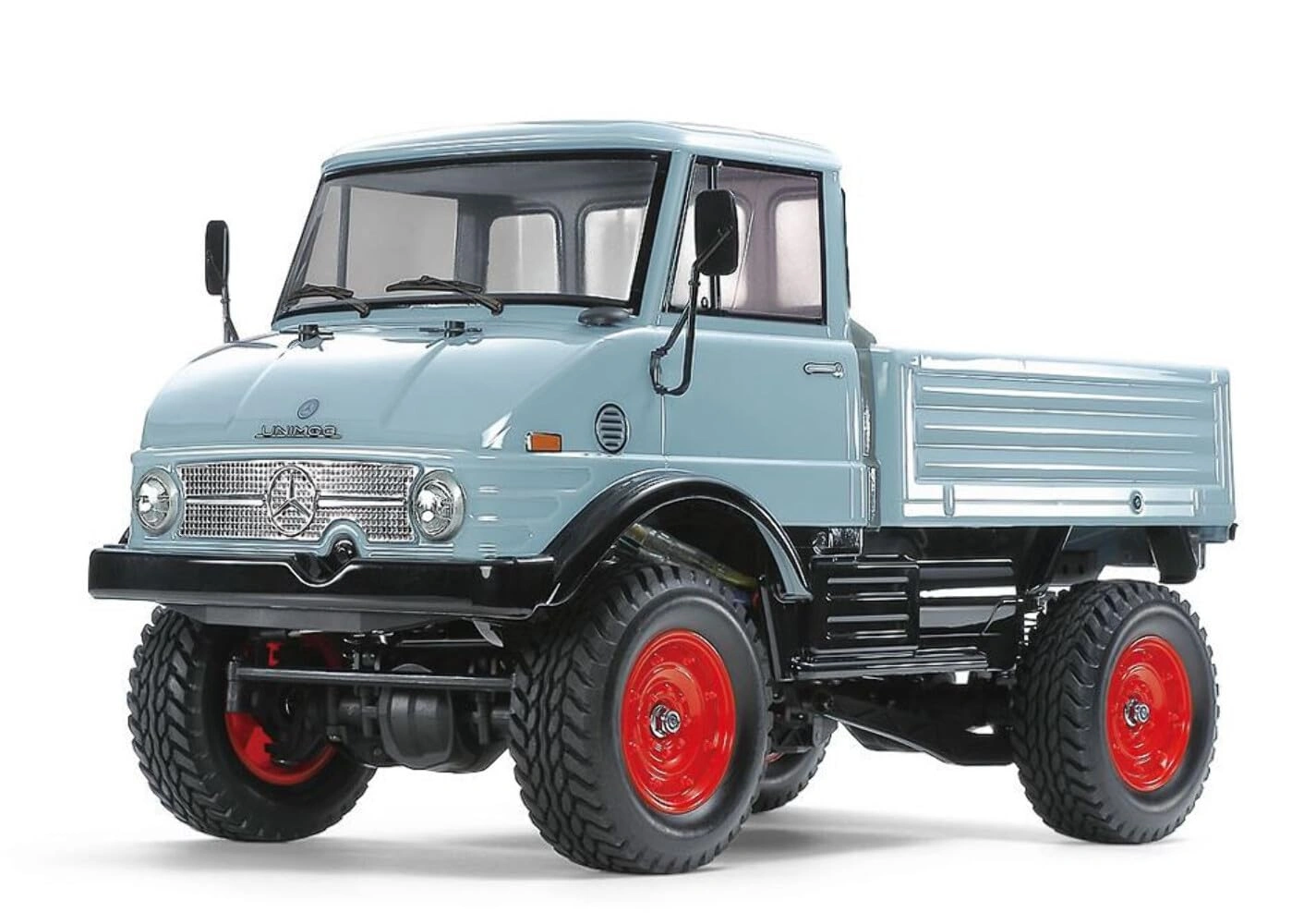

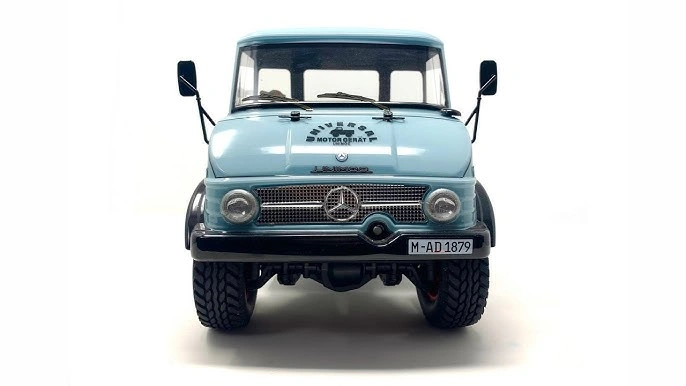

The Tamiya Mercedes-Benz Unimog 406 CC-02 1/10 4WD Scale Truck Kit is a Limited-Edition version of the Unimog 406 Series U900. This version features a pre-painted body in Tamiya PS-32 Corsa Gray, unlike the standard kit in item TAM58692.
The multi-purpose Mercedes-Benz Unimog is a truck with unrivalled off-road performance and its name is an acronym which stands for the German description 'Universal-Motor-Gerät.' The 406, which also has the ability to equip any of approximately 3,000 attachments for every imaginable task, now is depicted on the proven Tamiya CC-02 chassis.
CC-02 Chassis - Off Road, Evolved
Designed for a wide range of off-road environments, including rocky terrain, the CC-02 chassis' ladder frame is inspired by full-size vehicles and is the base for its superior durability. A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear. Four-link rigid suspension is employed front and rear, with CVA oil dampers for all-encompassing control, even on tricky rock sections. This model comes with red wheels and grippy block pattern tires.
Features:
- 1/10 R/C model assembly kit
- Pre-Painted Polycarbonate body (Tamiya PS-32 Corsa Gray) with separate parts included for side mirrors and fuel tank, plus a metal-plated front grille and emblem
- Includes block pattern tires, and red ABS wheels with a depiction of beadlock designs
- Propeller shafts (short: 76mm) included
- The CC-02 chassis is designed for a wide range of off-road scenes including rocky terrain, and its ladder frame is inspired by full-size vehicles and is the base for its superior durability
- A 4WD setup employs the motor longitudinally behind the front axle with separated gearbox and transfer case, and propeller shafts transmitting power to the differential gears front and rear
- Includes 540-brushed type motor
- LED lights included
- Includes TBLE-04S ESC - Compatible with brushless motors (sensored) of 21.5 turns and higher, and Tamiya brushed motors 25 turns and over
Specifications:
Length: 384mm
Width: 196mm
Height: 224mm
Wheelbase: 242mm
Adjustable Gear Ratio: Yes
Bearings: Plastic bushing
Body Material: Polycarbonate pre-painted body
Body Stickers: Included
Chassis Material: FRP Fiberglass Reinforced Plastic
Chassis Type: CC-02
Construction Type: Assembly Kit
Differential Type: Gear
Drive Type: 4WD
Motor: 540-brushed type
Scale: 1/10
Shock Damper: CVA Oil-filled damper
Terrain Use: Multi-Purpose
Needed to Complete:- 2-channel radio
- Steering servo
- 7.2-7.4volt battery pack
- Compatible charger
